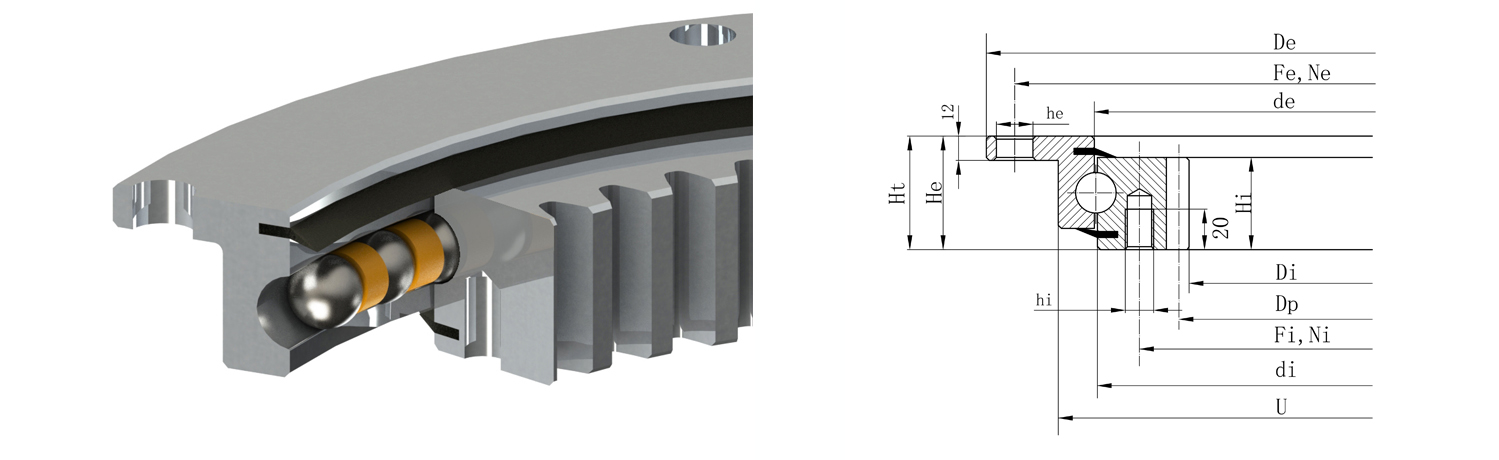

產品特點:外輪上帶有法蘭的系列轉盤軸承回轉支承使軸向定位變得簡單。不再需要軸承座,它變得更加經濟。為了獲得軸承的低摩擦扭矩,高剛度和良好的旋轉精度,使用了外徑小的鋼球。中空軸的使用確保了重量輕和配線空間。法蘭式轉盤軸承主要承受徑向載荷,但也可以同時承受徑向載荷和軸向載荷。
型號 | 外形尺寸 | 安裝尺寸 | 齒參數 | 載荷 | 重量 | ||||||||||||||||
De | de | di | Di | He | Hi | Ht | U | V | Fe | Fi | Ne | he | Ni | hi | Dp | m | z | k.m | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [mm] | [mm] | [-] | [mm] |
|
|
|
[kn] | [kg] | |
1L20-E-0414 | 504 | 415.5 | 412.5 | 304 | 45.5 | 45.5 | 56 | - | 375 | 455 | 332 | 10 | M12 | 24 | 18 | 495 | 5 | 99 | -0.5 | 23.5 | 29 |
1L20-E-0544 | 640.8 | 545.5 | 542.5 | 434 | 45.5 | 45.5 | 56 | - | 505 | 585 | 462 | 14 | M12 | 28 | 18 | 630 | 6 | 105 | -0.6 | 28.4 | 39.2 |
1L20-E-0644 | 742.8 | 645.5 | 642.5 | 534 | 45.5 | 45.5 | 56 | - | 605 | 685 | 562 | 16 | M12 | 32 | 18 | 732 | 6 | 122 | -0.6 | 28.4 | 47.2 |
1L20-E-0744 | 838.8 | 745.5 | 742.5 | 634 | 45.5 | 45.5 | 56 | - | 705 | 785 | 662 | 18 | M12 | 32 | 18 | 828 | 6 | 138 | -0.6 | 28.4 | 53.1 |
1L20-E-0844 | 950.4 | 845.5 | 842.5 | 734 | 45.5 | 45.5 | 56 | - | 805 | 885 | 762 | 18 | M12 | 36 | 18 | 936 | 8 | 117 | -0.8 | 37.86 | 64.7 |
1L20-E-0944 | 1046.4 | 945.5 | 942.5 | 834 | 45.5 | 45.5 | 56 | - | 905 | 985 | 862 | 20 | M12 | 40 | 18 | 1032 | 8 | 129 | -0.8 | 37.86 | 69.1 |
1L20-E-1094 | 1198.4 | 1095.5 | 1092.5 | 984 | 45.5 | 45.5 | 56 | - | 1055 | 1135 | 1012 | 22 | M12 | 40 | 18 | 1184 | 8 | 148 | -0.8 | 37.86 | 82.5 |
1L30-E-0955 | 1096.2 | 953.5 | 956.5 | 805 | 71 | 71 | 90 | - | 893 | 1016 | 845 | 30 | M20 | 30 | 22 | 1080 | 9 | 120 | –0.9 | 66.46 | 165 |
1L30-E-1055 | 1198 | 1053.5 | 1056.5 | 905 | 71 | 71 | 90 | - | 993 | 1116 | 945 | 30 | M20 | 30 | 22 | 1180 | 10 | 118 | –1 | 73.84 | 183 |
1L30-E-1155 | 1298 | 1153.5 | 1156.5 | 1005 | 71 | 71 | 90 | - | 1093 | 1216 | 1045 | 36 | M20 | 36 | 22 | 1280 | 10 | 128 | –1 | 73.84 | 200 |
1L30-E-1255 | 1398 | 1253.5 | 1256.5 | 1105 | 71 | 71 | 90 | - | 1193 | 1316 | 1145 | 42 | M20 | 42 | 22 | 1380 | 10 | 138 | –1 | 73.84 | 216 |
1L30-E-1355 | 1498 | 1353.5 | 1356.5 | 1205 | 71 | 71 | 90 | - | 1293 | 1416 | 1245 | 42 | M20 | 42 | 22 | 1480 | 10 | 148 | –1 | 73.84 | 234 |
1L30-E-1455 | 1598 | 1453.5 | 1456.5 | 1305 | 71 | 71 | 90 | - | 1393 | 1516 | 1345 | 48 | M20 | 48 | 22 | 1580 | 10 | 158 | –1 | 73.84 | 250 |

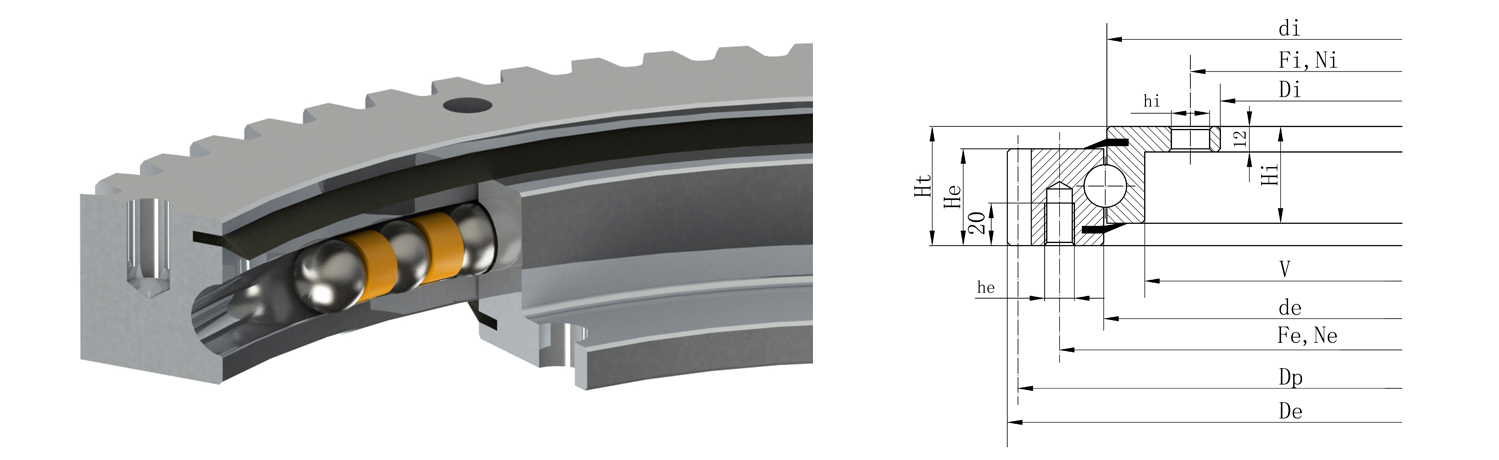

內齒法蘭轉盤軸承型號參數
型號 | 外形尺寸 | 安裝尺寸 | 齒參數 | 載荷 | 重量 | ||||||||||||||||
De | de | di | Di | He | Hi | Ht | U | V | Fe | Fi | Ne | he | Ni | hi | Dp | m | z | k.m | |||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [-] | [mm] | [mm] | [-] | [mm] | [kN] | [kg] | |||
1L20-I-0414 | 518 | 415.5 | 412.5 | 326.5 | 45.5 | 45.5 | 56 | 453 | - | 490 | 375 | 16 | 18 | 12 | M12 | 335 | 5 | 67 | -0.75 | 27.08 | 26.9 |
1L20-I-0544 | 648 | 545.5 | 542.5 | 445.2 | 45.5 | 45.5 | 56 | 583 | - | 620 | 505 | 20 | 18 | 16 | M12 | 456 | 6 | 76 | -0.6 | 32 | 36.7 |
1L20-I-0644 | 748 | 645.5 | 642.5 | 547.2 | 45.5 | 45.5 | 56 | 683 | - | 720 | 605 | 24 | 18 | 18 | M12 | 558 | 6 | 93 | -0.6 | 31.24 | 43.4 |
1L20-I-0744 | 848 | 745.5 | 742.5 | 649.2 | 45.5 | 45.5 | 56 | 783 | - | 820 | 705 | 24 | 18 | 20 | M12 | 660 | 6 | 110 | -0.6 | 30.64 | 50.8 |
1L20-I-0844 | 948 | 845.5 | 842.5 | 737.6 | 45.5 | 45.5 | 56 | 883 | - | 920 | 805 | 28 | 18 | 20 | M12 | 752 | 8 | 94 | -0.8 | 41.6 | 61.3 |
1L20-I-0944 | 1048 | 945.5 | 942.5 | 841.6 | 45.5 | 45.5 | 56 | 983 | - | 1020 | 905 | 32 | 18 | 22 | M12 | 856 | 8 | 107 | -0.8 | 40.98 | 65.4 |
1L20-I-1094 | 1198 | 1095.5 | 1092.5 | 985.6 | 45.5 | 45.5 | 56 | 1133 | - | 1170 | 1055 | 32 | 18 | 24 | M12 | 1000 | 8 | 125 | -0.8 | 40.32 | 80.3 |
1L30-I-0955 | 1100 | 953.5 | 956.5 | 812 | 71 | 71 | 90 | 1017 | - | 1060 | 894 | 30 | 22 | 30 | M20 | 830 | 10 | 83 | –1 | 82.36 | 159 |
1L30-I-1055 | 1200 | 1053.5 | 1056.5 | 912 | 71 | 71 | 90 | 1117 | - | 1160 | 994 | 30 | 22 | 30 | M20 | 930 | 10 | 93 | –1 | 81.26 | 176 |
1L30-I-1155 | 1300 | 1153.5 | 1156.5 | 1012 | 71 | 71 | 90 | 1217 | - | 1260 | 1094 | 36 | 22 | 36 | M20 | 1030 | 10 | 103 | –1 | 80.3 | 192 |
1L30-I-1255 | 1400 | 1253.5 | 1256.5 | 1112 | 71 | 71 | 90 | 1317 | - | 1360 | 1194 | 42 | 22 | 42 | M20 | 1130 | 10 | 113 | –1 | 79.48 | 208 |
1L30-I-1355 | 1500 | 1353.5 | 1356.5 | 1212 | 71 | 71 | 90 | 1417 | - | 1460 | 1294 | 42 | 22 | 42 | M20 | 1230 | 10 | 123 | –1 | 78.78 | 226 |
1L30-I-1455 | 1600 | 1453.5 | 1456.5 | 1310 | 71 | 71 | 90 | 1517 | - | 1560 | 1394 | 48 | 22 | 48 | M20 | 1330 | 10 | 133 | – | 78.2 | 243 |

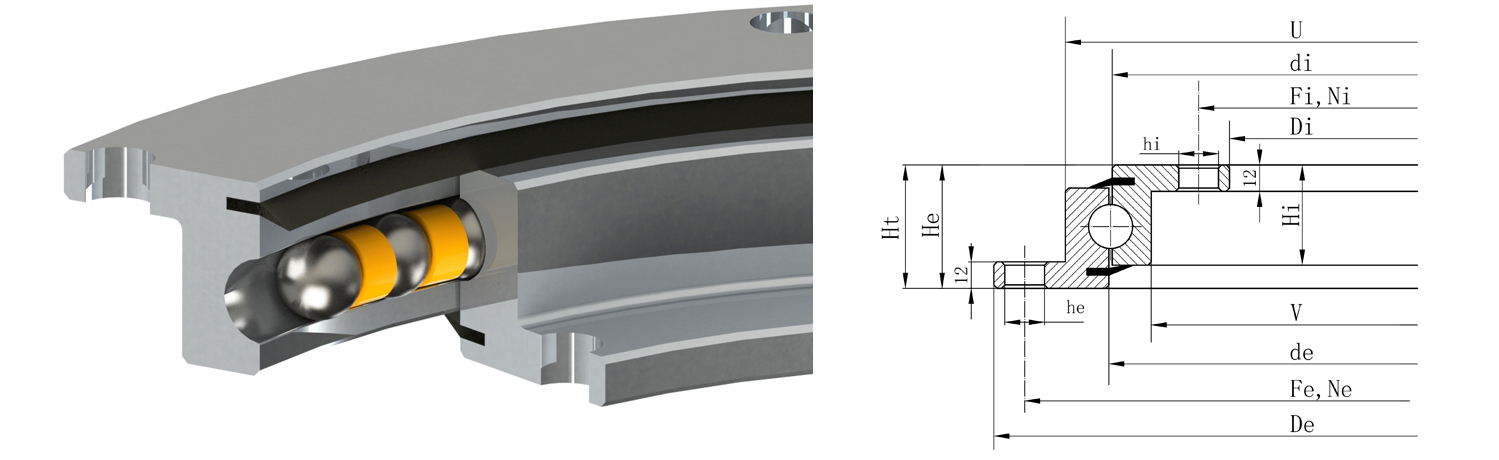

無齒法蘭轉盤軸承型號參數
型號 | 外形尺寸 | 安裝尺寸 | 重量 | |||||||||||||
De | de | di | Di | He | Hi | Ht | U | V | Fe | Fi | Ne | he | Ni | hi | ||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [-] | [-] | [kg] | |||
1L20-U-0414 | 518 | 415.5 | 412.5 | 304 | 45.5 | 45.5 | 56 | 453 | 375 | 490 | 332 | 16 | 18 | 24 | 18 | 23 |
1L20-U-0544 | 648 | 545.5 | 542.5 | 434 | 45.5 | 45.5 | 56 | 583 | 505 | 620 | 462 | 20 | 18 | 28 | 18 | 30.4 |
1L20-U-0644 | 748 | 645.5 | 642.5 | 534 | 45.5 | 45.5 | 56 | 683 | 605 | 720 | 562 | 24 | 18 | 32 | 18 | 35.8 |
1L20-U-0744 | 848 | 745.5 | 742.5 | 634 | 45.5 | 45.5 | 56 | 783 | 705 | 820 | 662 | 24 | 18 | 32 | 18 | 42.2 |
1L20-U-0844 | 948 | 845.5 | 842.5 | 734 | 45.5 | 45.5 | 56 | 883 | 805 | 920 | 762 | 28 | 18 | 36 | 18 | 47.1 |
1L20-U-0944 | 1048 | 945.5 | 942.5 | 834 | 45.5 | 45.5 | 56 | 983 | 905 | 1020 | 862 | 32 | 18 | 40 | 18 | 52.3 |
1L20-U-1094 | 1198 | 1095.5 | 1092.5 | 984 | 45.5 | 45.5 | 56 | 1133 | 1055 | 1170 | 1012 | 32 | 18 | 40 | 18 | 61.1 |
1L30-U-0955 | 1100 | 953.5 | 956.5 | 805 | 71 | 71 | 90 | 1017 | 893 | 1060 | 845 | 30 | 22 | 30 | 22 | 131 |
1L30-U-1055 | 1200 | 1053.5 | 1056.5 | 905 | 71 | 71 | 90 | 1117 | 993 | 1160 | 945 | 30 | 22 | 30 | 22 | 145 |
1L30-U-1155 | 1300 | 1153.5 | 1156.5 | 1005 | 71 | 71 | 90 | 1217 | 1093 | 1260 | 1045 | 36 | 22 | 36 | 22 | 159 |
1L30-U-1255 | 1400 | 1253.5 | 1256.5 | 1105 | 71 | 71 | 90 | 1317 | 1193 | 1360 | 1145 | 42 | 22 | 42 | 22 | 172 |
1L30-U-1355 | 1500 | 1353.5 | 1356.5 | 1205 | 71 | 71 | 90 | 1417 | 1293 | 1460 | 1245 | 42 | 22 | 42 | 22 | 186 |
1L30-U-1455 | 1600 | 1453.5 | 1456.5 | 1305 | 71 | 71 | 90 | 1517 | 1393 | 1560 | 1345 | 48 | 22 | 48 | 22 | 200 |

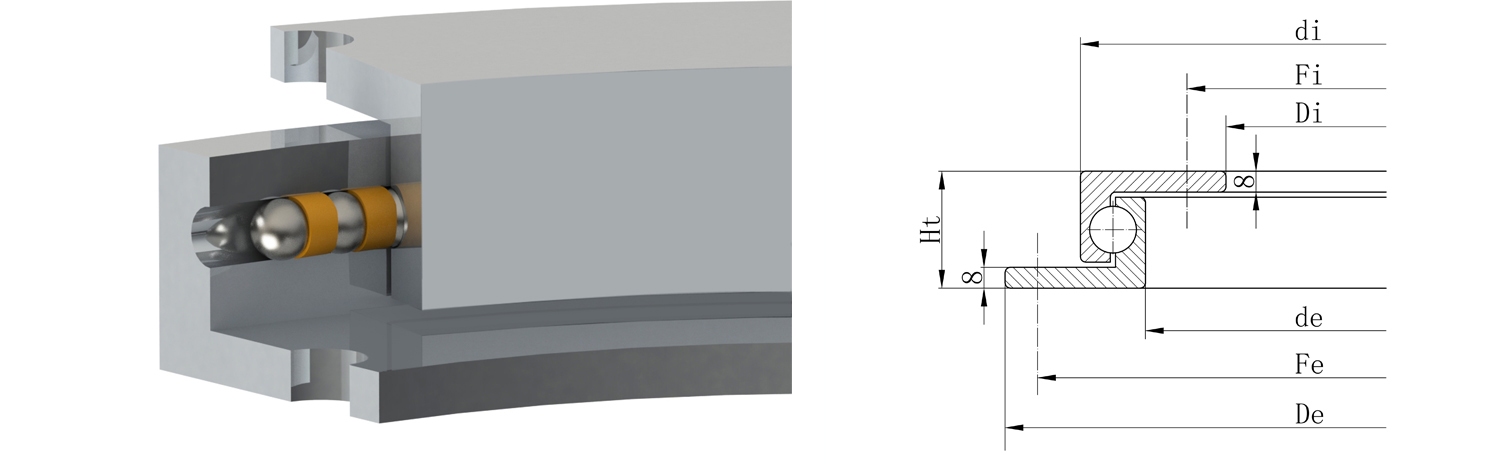

反向法蘭轉盤軸承型號參數
型號 | 外形尺寸 | 安裝尺寸 | 重量 | |||||
De | di | de | Di | Ht | Fe | Fi | Weight | |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | kg | |
1O09-U-0400 | 400 | 342 | 292 | 230 | 45 | 375 | 260 | 11 |
1O09-U-0500 | 500 | 442 | 392 | 330 | 45 | 475 | 360 | 15 |
1O09-U-0650 | 650 | 592 | 542 | 480 | 45 | 625 | 510 | 20 |
1O09-U-0750 | 750 | 692 | 642 | 580 | 45 | 725 | 610 | 23 |
1O09-U-0850 | 850 | 792 | 742 | 680 | 45 | 825 | 710 | 27 |
1O09-U-0950 | 950 | 892 | 842 | 780 | 45 | 925 | 810 | 30 |
1O09-U-1050 | 1050 | 992 | 942 | 880 | 45 | 1025 | 910 | 34 |
1O12-U-0500 | 500 | 437 | 384 | 315 | 52 | 475 | 340 | 17 |
1O12-U-0650 | 650 | 587 | 534 | 465 | 52 | 625 | 490 | 23 |
1O12-U-0750 | 750 | 687 | 634 | 565 | 52 | 725 | 590 | 28 |
1O12-U-0850 | 850 | 787 | 734 | 665 | 52 | 825 | 690 | 32 |
1O12-U-0950 | 950 | 887 | 834 | 765 | 52 | 925 | 790 | 36 |
1O12-U-1050 | 1050 | 987 | 934 | 865 | 52 | 1025 | 890 | 40 |
